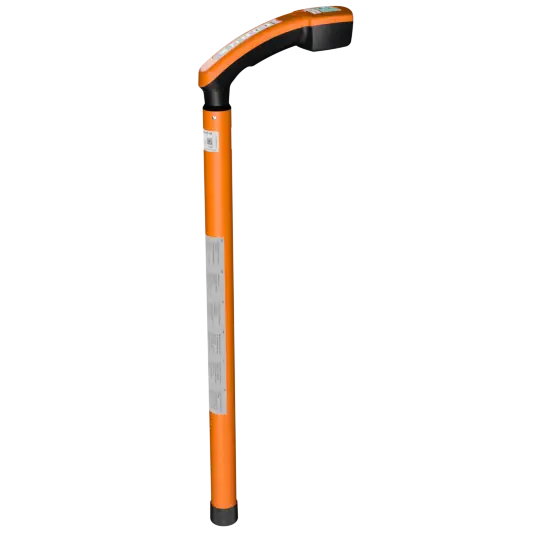

Manhole Cover Detector – Ferrotec FT10

➡️Product description

Manhole Cover Detector

FerroTec FT 10 – Fast – Convenient and Accurate

Easy Location Detection of Ferromagnetic Objects

Manhole Cover Detector FT10 It helps safely locate hidden shaft covers, sliding bars and covers, as well as pavement markers and other objects. The only requirement is that they are made of iron, cast iron, or steel. Its ergonomic design, easy usability, and precise measurement technology make your job quick and easy Bkn.

Measurement Principle of Metal Detector: Robust Technology with Ergonomic Design

Iron-containing objects cause changes in the Earth's magnetic field, and they can be detected by the two magnetic precision sensors (Fluxgate magnetometers) in the FERROTEC FT 10, which then converts them into an acoustic signal

In addition, it indicates on the screen when the desired object is nearby. The closer you are to the object, the stronger the signal becomes. When the maximum signal strength is reached, the FERROTEC FT 10 is directly above the object.

Manhole Cover Detector

Fast and Reliable Results

The FERROTEC FT 10 recognizes 50 Hz alternating fields, thus accurately guiding power cables to their exact position, preventing false detections/interferences, and protecting you against electric shocks during excavation.
FERROTEC FT 10, büyük nesnelerde polarite değişiklikleri tanır, örneğin şaft kapaklarında. Nesnenin yönüne bağlı olarak – onun konumunu ve boyutunu sınıflandırabilmenizi anlamına gelir.

Easy to Use for Effortless Measurements.
The FERROTEC FT 10 enables you to work for hours or even the whole day without getting tired. Its lightweight, balanced structure, and ergonomic design make it extremely comfortable to carry.

Carry and operate your magnetometer easily with one hand—whether you are right-handed or left-handed. Your other hand remains completely free for the task at hand.
The device can be operated intuitively without extensive training and using only five buttons, which can be pressed with the hand carrying it. You can easily activate the FERROTEC FT 10 by simply placing your thumb in the capacitive sensor area and quickly initiate or stop location detection procedures

Select the display on the screen to adjust personal preferences.
akustik sinyaline ek olarak, benzersiz daire görünümü ve geleneksel çubuk görünümü arasında seçim yapabilirsiniz.

This also helps less experienced users reliably find the maximum value
Thanks to its IP65 protection class and extremely robust structure, it is not affected by dirt, dust, or rain. You can work in all weather conditions, and it's always ready for deployment.

Benefit from the long operation time of the integrated rechargeable battery: One charge is sufficient for 10 hours, meaning a full day of work - this means no more cumbersome battery changes and increased usability

Precision location in all environments

With its exceptional sensitivity of 3 nT (Nanotesla), the FERROTEC FT 10 is one of the most powerful magnetometers on the market. This means it is six times more sensitive than its predecessor and can detect objects at low depths. We also chose not to use magnetic headphones to maintain high location accuracy without distortion

It removes the existing magnetic field with the zero point switch, allowing immediate detection of changes in the field and safely excluding surrounding interference. The sensitivity of the FERROTEC FT 10 can be adjusted in six levels, allowing adaptation to individual environmental influences.

In addition, you can further increase its sensitivity to the maximum with the sensitivity boost function to confirm uncertain results and reach even greater depths -Manhole Cover Detector-

Objects made of non-ferrous materials, such as precious metals, cannot be detected and do not interfere with the measurement result

For seamless location of ferromagnetic objects

With the FerroTec FT 10, you can safely and reliably locate closed manhole covers, sliding bars, and covers, while also marking nails or other objects. Prerequisite: They are made of iron, cast iron, or steel. The ergonomic design, comfortable use, and precise measurement technology ensure quick and easy operation.

Measurement principle: Robust technology in an ergonomic design

Iron-containing objects cause a change in the Earth's magnetic field, which is recorded by the two magnetically sensitive sensors (fluxgate magnetometers) in the FerroTec FT 10 and converted into an acoustic signal. Additionally, the approach to the sought object is optically displayed on the screen. The closer the object is, the stronger the signal. At maximum signal strength, the FerroTec FT 10 is positioned directly above the object, hence precisely located.

Fast and secure results

The FerroTec FT 10 recognizes 50 Hz alternating fields and accurately indicates the exact location of live cables. This prevents confusion and false locations and protects against electric shocks during excavations

The FerroTec FT 10 detects a polarity change in large objects such as manhole covers. Depending on the direction of the object, you can classify its position and size
