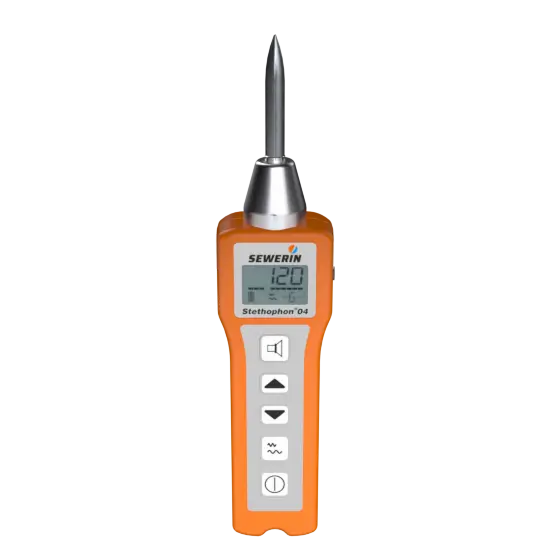

Stethophon 04 Water Leak Detector

➡️Product description

Prevent Water Leaks with Smart Technology: Discover the Stethophon 04 Water Leak Detector

Stethophon 04 Operating Principle:

Globally, physical water leak detection is generally carried out using acoustic listening methods. This involves using sensitive microphones to detect vibrations and oscillations occurring on pipes. Technological advancements have made significant improvements in this field, providing enhanced convenience and accuracy in water leak detection, similar to advancements in many other sectors.

Operating Instructions

◼️ WHERE TO USE

The device is suitable for use in municipal water networks with a specific pressure, as well as in internal building systems including heating systems, natural gas, and oil pipelines. After testing, if a leak is suspected, you can apply pressurized water into the line and listen for leaks.

◼️WHY USE IT

Detecting the exact location of a water leak with the Stethophon 04 water leak detector can be challenging. Identifying the leak usually requires digging at all suspected points, which can be impractical and time-consuming. This method is not always effective. Physical water leak detection devices eliminate the need for excavation, allowing you to locate the leak precisely.

FIELD USAGE GUIDELINES

1. 1. 1. When using the Stethophon 04 water leak detector, it is crucial to ensure that no external noises interfere with the device, especially in areas where excessive noise is present. Verify that the device’s settings and values are accurate.
      2. The Stethophon 04 water leak detection detector is a sound detector that amplifies and records all types of structural vibrations. It ensures clear sound reproduction even for vibrations that are very difficult to hear.
      3. In addition to wired headphones, a wireless version with SDR (Sewerin Digital Radio) is also available. The SDR wired version provides better sound transmission. The wireless option significantly enhances work comfort compared to the wired version, as it allows for greater mobility. When the detector is turned on, it automatically establishes a one-way connection with the headphones.
      4. Sewerin Digital Radio operates losslessly over short distances.
      5. Thanks to full digital signal processing compared to simple analog radio communication, there is no hiss, interference, or need for amplification.
      6. The filter function allows the user to listen to and detect sounds at the most suitable frequency. Filters make it easier to hear typical sounds associated with leaks, such as deep high frequencies in plastic pipes and higher frequencies in metal pipes.
      7. The hearing protection feature automatically activates to protect the user from excessive sound levels. To facilitate leak detection, the Stethophon 04 displays sound levels not only acoustically but also digitally on the screen. The previously recorded and current lowest sound levels are displayed numerically on the screen, allowing for objective comparison.

Features of the Stethophon 04 Water Leak Detector

◼️ Digital Signal Communication (SDR) Wireless Headphones

◼️ External Ground Microphone

◼️ 8 Adjustable Filters and Unlimited Sound Settings

◼️ Hearing Protection Function

◼️ Numeric Display of Lowest Sound Levels (0-1000)

◼️ Minimum Operating Time: 8 Hours

◼️ Lightweight Body, Only 290 grams

◼️ Compact Size: 50 x 228 x 30 mm (WxHxD)

◼️Dijital sinyal iletişimli (SDR) kablosuz kulaklıklar

◼️ External Ground Microphone

◼️8 ayrı filtre ve sınırsız ses ayan

◼️ Hearing Protection Function

◼️ Numeric Display of Lowest Sound Levels (0-1000)

◼️ Minimum Operating Time: 8 Hours

◼️ Lightweight Body, Only 290 grams

◼️El boyutlannda: sadece 50 x 228 x 30 mm (ExBxY)

Applications:

◼️ Detection of faults in building plumbing and heating systems

◼️ Inspection of service lines in place of water meters

◼️ Localization of damage in pressurized air systems

◼️ Rapid leak detection in water networks

◼️ Inspection of machine bearings

Product Components:

◼️Stethophon ® 04

◼️ Wireless Headphones

◼️ Ground Microphone

◼️ Probe Tip

◼️ Rechargeable Battery

◼️ Carrying Case

“Water Leak Detector – Water Leak Detector – Acoustic Listening Method for Water Leak Detection”

Stethophon04 brochure
