➡️Product description

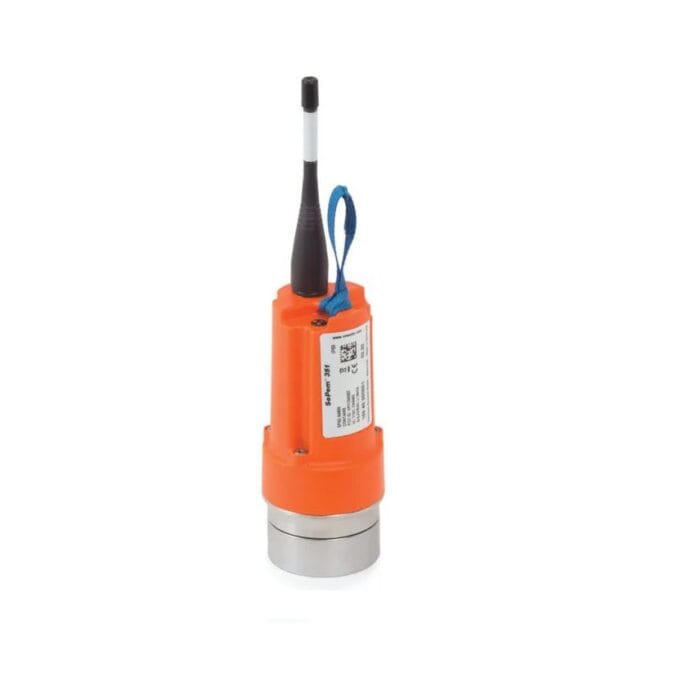

SePem® 351 Noise Logger
The SePem® 351 noise logger monitors your water distribution networks. Aiming to reduce water losses, it transmits measurement data via LoRaWAN®.
The SePem® 351 logger is specifically designed for fixed installation. It measures noises in the pipeline network at scheduled intervals. After measurement, the recorded data is evaluated and prepared for transmission.
The logger must be registered with a LoRaWAN® network to enable the measurement data to be sent later to a water utility's control panel. A network information system is required to visualize the results.
Measurement values are transmitted daily by each SePem® 351, allowing new leaks to be detected within a few hours. Utilizing existing LoRaWAN® networks ensures optimal connectivity for the applied technologies.
◼️SePem® 351: Designed for use in distribution networks.
◼️SePem® 351 HY: Used for acoustic monitoring of main lines.
◼️We are happy to assist with integrating the SePem® 351 into existing network information systems.
◼️LoRaWAN® is a trademark used under the LoRa Alliance® license.
Technical Data
◼️ Dimensions (W × H): 126 × 54 mm (without antenna)
◼️ Weight: Approx. 760 g (without antenna)
◼️ Marking: CE
◼️ Operating Temperature: -20 to 55°C
◼️ Protection Class: IP68
◼️ Power Source: Lithium metal battery
◼️ Expected Operating Life: 10 years
◼️ Frequency Bands: LoRaWAN® AS923, AU915, EU868, KR920, IN865
◼️ National Radio Certification: May be required

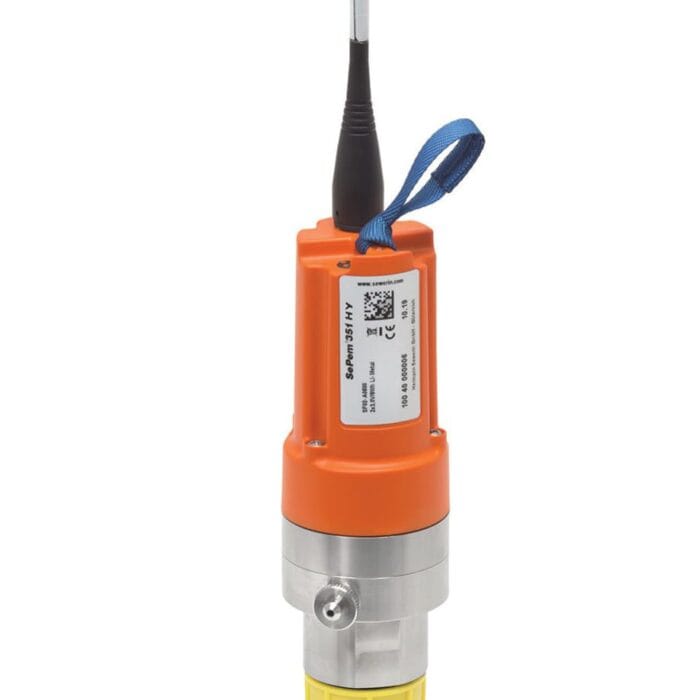

SePem® 351 HY
◼️ Dimensions (W × D × H): 55 × 65 × 170 mm (without antenna)
◼️ Weight: Approx. 820 g (without antenna)
◼️ Marking: CE
◼️ Operating Temperature: 0 to 55°C
◼️ Water Pressure: Up to 16 bar
◼️ Protection Class: IP68
◼️ Power Source: Lithium metal battery
◼️ Expected Operating Life: 10 years
◼️ Frequency Bands: LoRaWAN® AS923, AU915, EU868, KR920, IN865
◼️ National Radio Certification: May be required
◼️ Additional Connection Option: 1″ external thread
